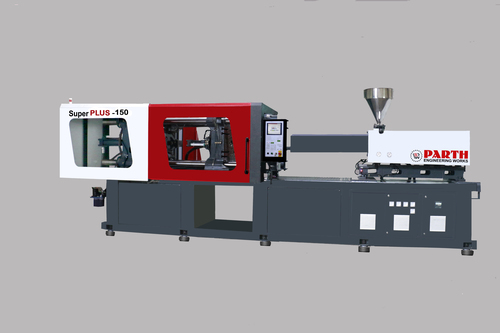

130 Ton Horizontal Plastic Injection Molding Machine

130 Ton Horizontal Plastic Injection Molding Machine
130 Ton Horizontal Plastic Injection Molding Machine
Send Inquiry
Product Code : 01
Product Description

130 Ton Horizontal Plastic Injection Molding Machine

Product Details:

Minimum Order Quantity

1 Unit

Brand

Parth

Oil Tank Capacity

300 ltr

Pump Motor

20 hp

Heater

9 kW

Screw Diameter

45-50 mm

Shot Weight

200-250 gm

Screw Stroke

200 mm

Nozzle Stroke

280 mm

Temperature

4 zone

Mold Opening Stroke

400 mm

Mold Height

220-450 mm

Tabar Distance

460 * 460 mm

Mold Platen Size

675 * 675 mm

Ejector Stroke

90 mm

Ejector Force

4.6 ton

Machine Structure

Horizontal

Operation Mode

Automatic

Capacity ( ton per day)

100 to 150

Plastic Type

PE, PET

Clamping Way

Hydraulic

Structure

Horizontal


PARTH ENGINEERING WORKS
